PRODUCT LINE

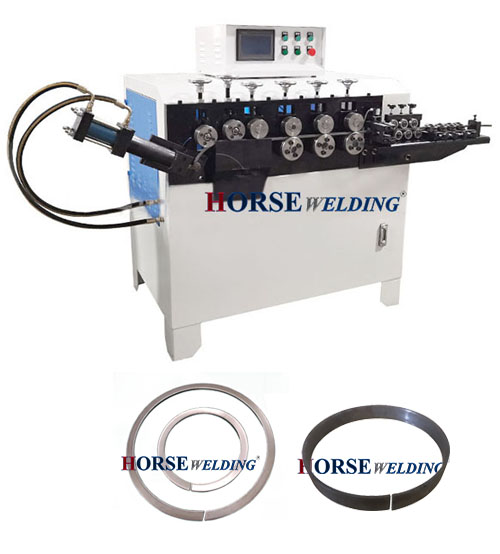

Flat Wire Ring Making Machine

Model：RM-3000
  • ring making machine

    • This Ring making machine for forming different shapes or wires such as flat wires or other shapes of wires. Add other function on the machine such as punching holes on wires or bending wires can be achieved.

ring forming machine
  • Ring forming machine for special wires, flat wires or other special shapes wires to form a circular ring.
  • Full Servo motor driving, with stable performance, high precision, and low noise. Easy to operate and maintain.
  • The encoder reads the wire feeding data, and the microcomputer controls the wire circumference to achieve the desired loop size and length.
  • The control is simple, and automatic production is achieved after inputting the production output and wire feeding speed.
  • This machine features both manual and fully automatic control, with slow-speed material feeding and withdrawing (easy for machine adjustment), automatic detection, cutting stop, and alarm.
Type RM-3000
Input Voltage 380V 50Hz 3Phases or Customized
Wire Thickness 2-10mm (Customized)
Production Efficienty (Eg. 200mm Ring) 25-30/min (The larger the ring, the slower the speed)
Tolerance ±0.5MM
Diameter Range 20-1000MM (Customized)
Outline Dimensions 1160*680*1450MM
Weight 750KG
